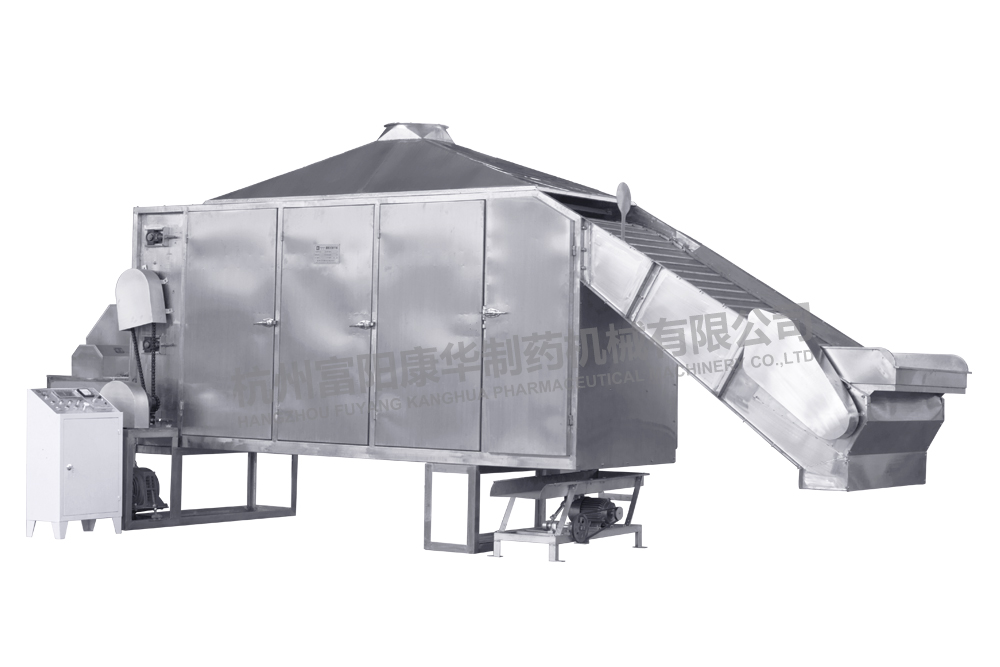

HG flap dryer
Product Video
Detail
Main uses:
This machine is suitable for traditional Chinese medicinal materials, aquatic products, and subsidiary agricultural products. Heat sources are coal, oil, steam, and electricity.
Features:
Automatic material feeding, continuous operation, electromagnetic stepless speed regulation, and high efficiency. It meets the requirement of GMP.
Main technical parameters:
|
Model |
Capacity (kg/h) |
Drying area (㎡) |
Power (kw) |
Energy consumption |
Dimension (mm) |
Ways of speed regulation |
Weight (kg) |
|
HG-16 |
80-160 |
16 |
5.25 |
Steam consumption 400kg/h |
8000×1900×2050 |
Electromagnetic speed regulation |
4000 |
|
HG-16 |
80-160 |
16 |
5.25 |
Power consumption 72kw/h |
8000×1900×2050 |
4000 |
|
|
HG-16 |
80-160 |
16 |
11.25 |
Coal consumption 25-40kg/h Oil consumption 9-15kg/h |
8000×1900×2050 |
4000 |
|
|
HG-25 |
130-280 |
25 |
5.25 |
Steam consumption ≤450/h |
8000×2350×2650 |
4500 |
|
|
HG-25 |
130-280 |
25 |
5.25 |
Power consumption 72kw/h |
8000×2350×2650 |
4500 |
|
|
HG-25 |
130-280 |
25 |
11.25 |
Coal consumption 30-50kg/h Oil consumption 15-20kg/h |
8000×2350×2650 |
4500 |
